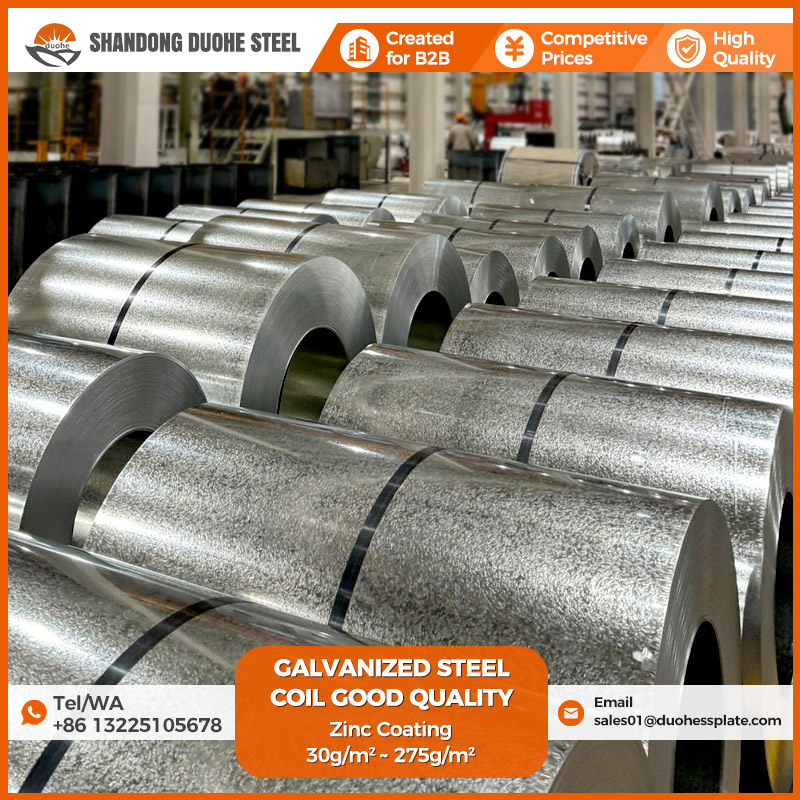

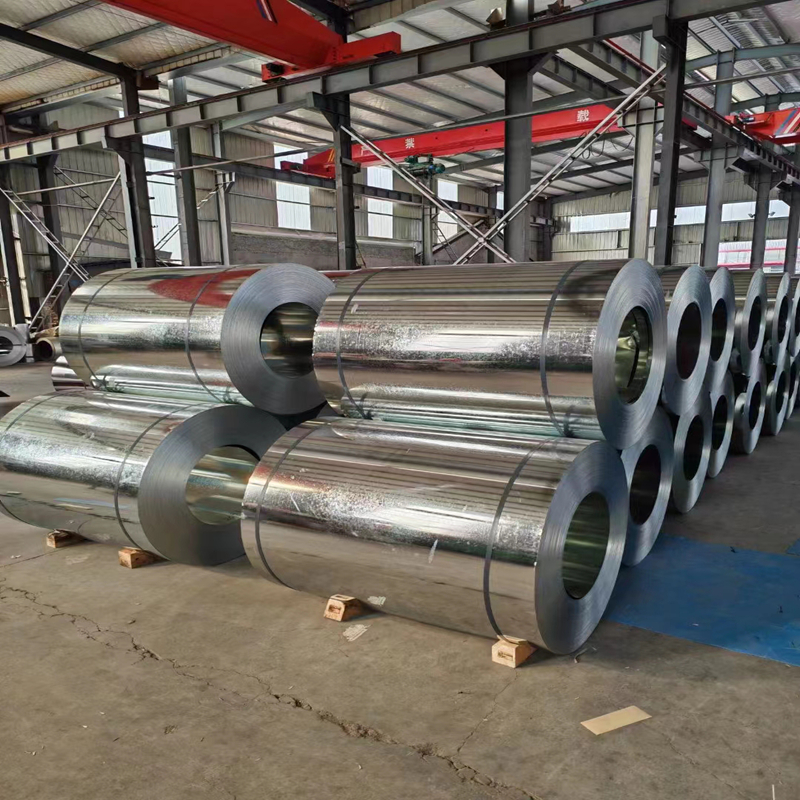

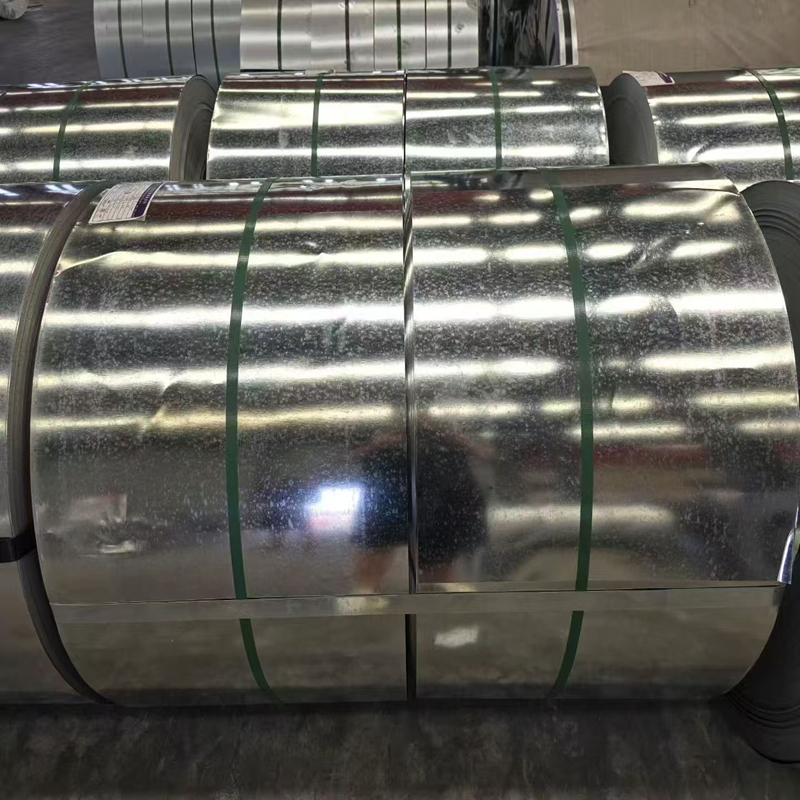

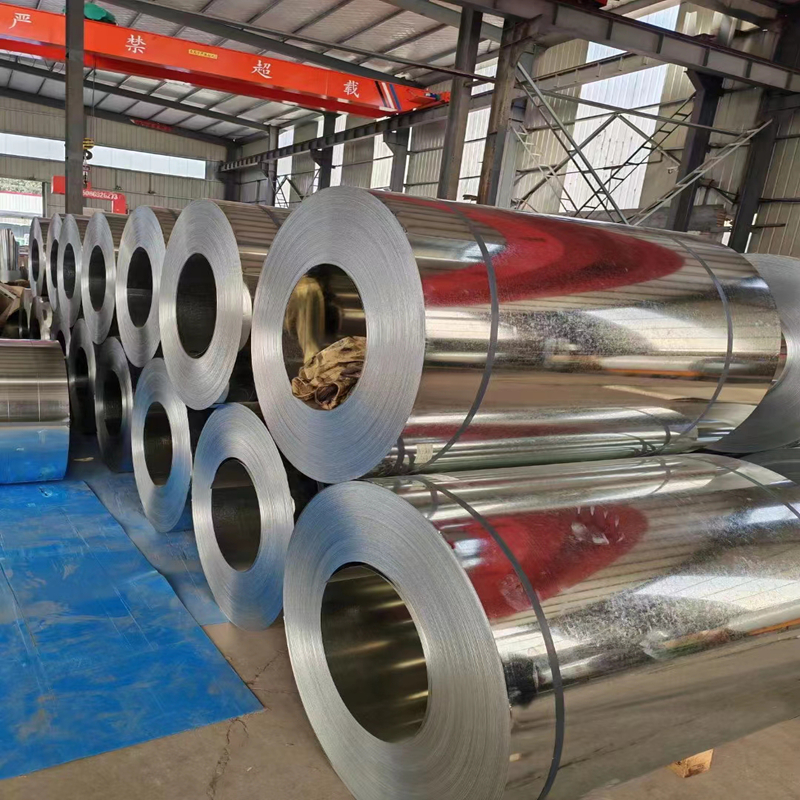

Galvanized Steel Strip Coil
Product Overview

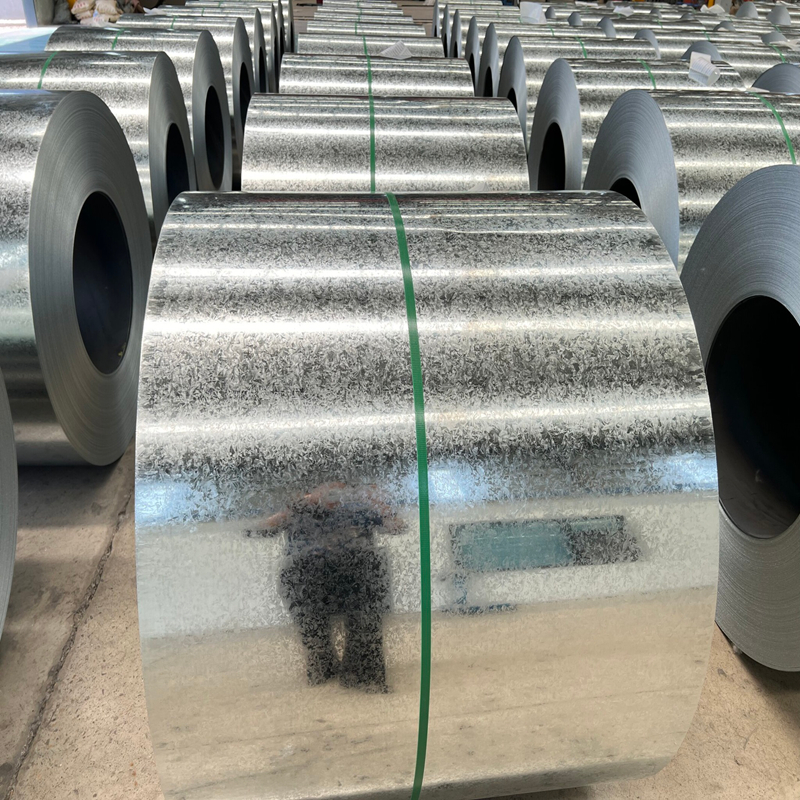

Our Galvanized Steel Coils are produced through a continuous hot-dip galvanizing process, where high-quality cold-rolled or hot-rolled steel is immersed in a bath of molten zinc. This creates a metallurgically bonded coating that provides exceptional corrosion protection and long-lasting durability.
The zinc coating acts as a barrier against environmental elements while also providing sacrificial (cathodic) protection to the steel substrate. This means that even if the surface is scratched or cut, the zinc will corrode preferentially, protecting the exposed steel from rust. Available in a wide range of coating weights, surface finishes, and mechanical properties, our galvanized coils are the cost-effective solution for applications requiring reliable corrosion resistance.
Key Features & Buyer Benefits
| Feature | Benefit to You |
| Excellent Corrosion Protection | The zinc coating provides both barrier and sacrificial protection, preventing red rust formation and extending product lifespan by decades in many environments. |
| Sacrificial Edge Protection | At cut edges, scratches, or drill holes, the zinc continues to protect the exposed steel, preventing rust creep. |
| Long Service Life | Depending on coating weight and environment, galvanized steel can last 20–50 years without maintenance. |
| Excellent Formability | The zinc coating adheres tightly to the base steel, allowing for bending, roll-forming, stamping, and deep drawing without flaking or cracking. |
| Full Surface Coverage | The hot-dip process ensures all surfaces, including edges and corners, are completely coated with zinc. |
| Cost-Effective Protection | One of the most economical methods of corrosion protection, offering excellent value compared to other coating systems. |
| Paintable Surface | With proper surface treatment, galvanized steel provides an excellent base for painting (available as "Galvannealed" for immediate painting). |
| Sustainable & Recyclable | Zinc is 100% recyclable without loss of properties, and the steel base is also fully recyclable. |
Buyer Priorities Covered
Performance: corrosion life, coating adhesion, surface quality, mechanical properties.
Compatibility: coil ID, coil weight, width and edge tolerances to fit buyer equipment.
Compliance & traceability: MTRs, standards (ASTM/EN/JIS/GB), third-party inspections.
Logistics & packing: seaworthy export packaging, MOQs, lead time and Incoterms.
Cost & lifecycle value: zinc coating class decisions, maintenance and warranty implications.
Quick Reference Specification Table (Typical Options)
| Item | Typical Range / Options | Buyer Notes |
| Base steel grades | DX51D, DC01, SPCC, SGCC, S220–S350 | Choose by formability, strength and welding needs |
| Thickness (base steel) | 0.15 mm – 6.0 mm (common: 0.3–3.0 mm) | Tighter tolerances available on request |
| Width | 600 mm – 2000 mm (common slit widths: 914, 1000, 1250 mm) | Specify slitting/cut-to-length requirements |
| Coil ID (inner diameter) | 508 mm, 610 mm (others on request) | Match your uncoiler mandrel |
| Coil OD / Weight | 0.5 MT – 10 MT per coil | Specify max coil weight for handling equipment |
| Zinc coating mass | Z30 – Z600 g/m² (coating classes e.g., G30/G60/G90/Z100/Z275/Z600) | Select by environment: indoor vs coastal vs industrial |
| Coating process | Hot-dip galvanized (HDG) / Electro-galvanized (EG) | HDG = heavier protection; EG = smoother surface for painting |
| Surface finish | Spangled, Zero-Spangle, Smooth | Affects appearance and paintability |
| Surface treatment | Passivation, Oil, Chromate-free passivation | For export protection and painting readiness |
| Tolerances | Per EN 10143 / ASTM A653 / JIS G3302 | Confirm for precision processing |

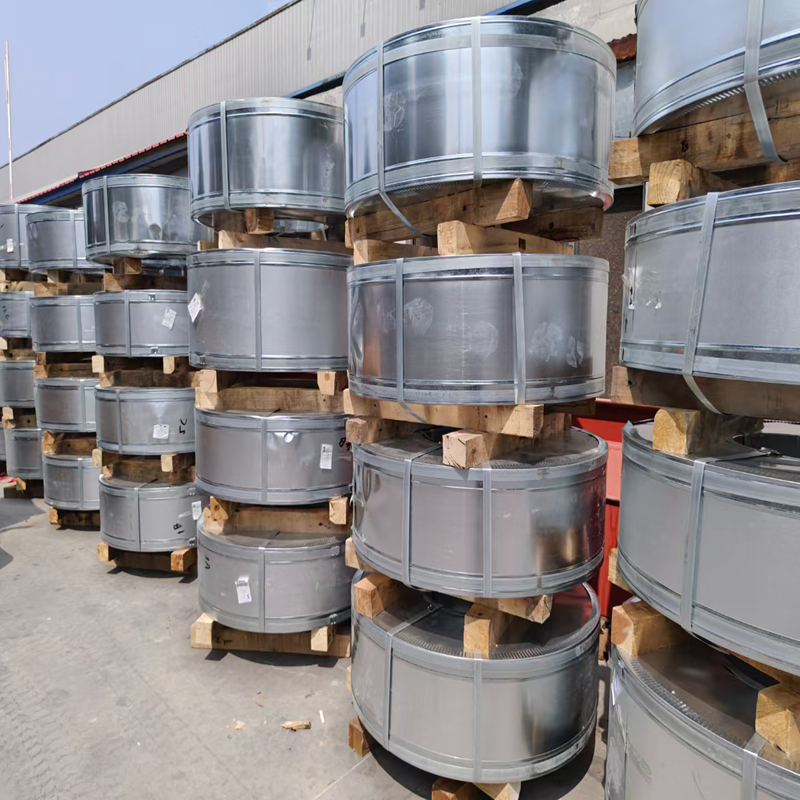

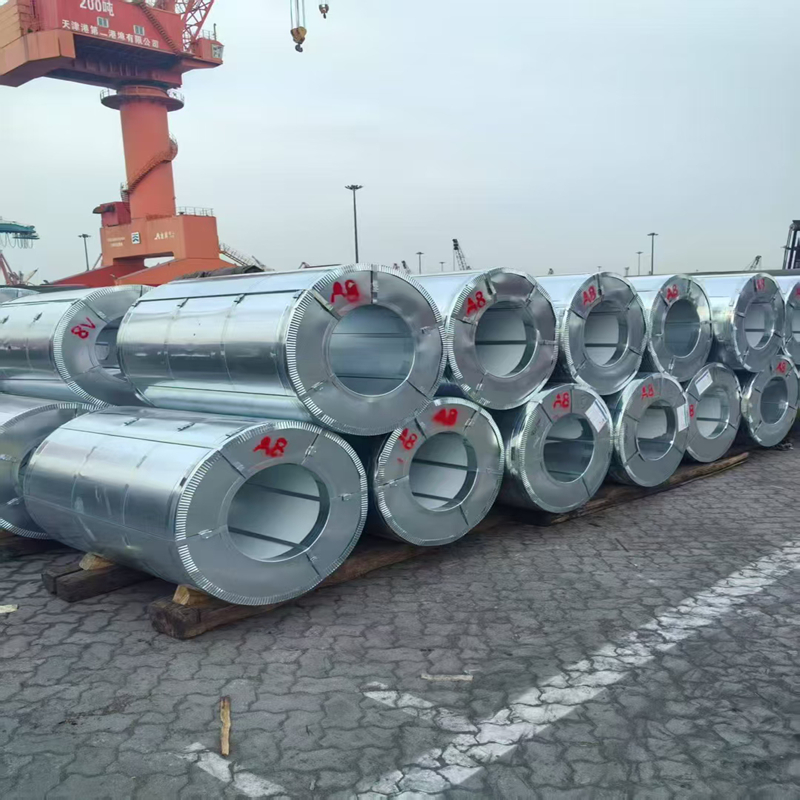

| Packing | Steel straps, inner VCI/kraft wrap, seaworthy wooden box/pallet | Custom packing for long sea voyages or harsh climates |
| Certification & tests | MTR, Coating mass report, Third-party inspection (SGS/BV) | State required certificates in RFQ |
| Lead time | 7–30+ days depending on stock/customization | Rush production may be possible |
| MOQ | Typically 1–5 MT per size; depends on mill | Negotiable for frame agreements |
Roofing & Cladding: economical protective layer for building envelopes; choose higher Z for long life in exposed areas.
Roll-formed profiles & purlins: coil-to-profile lines benefit from consistent thickness and edge quality.
HVAC ducting & fittings: smooth, formable surface and good weldability make coils suitable for air systems.
Appliance manufacturing: panels, cabinets and internal support where painted finish is required.
Automotive components: inner panels, reinforcements and structural parts where corrosion resistance is needed.
Electrical enclosures & cabinets: protection for indoor/outdoor installations with specified coating mass.
Agricultural & industrial equipment: silos, fencing, machinery covers—coils enable efficient fabrication.
FAQ — Frequently Asked Questions (for International Buyers)
Q: What is the primary difference between hot-dip galvanized coil and electro-galvanized coil?
A: Hot-dip galvanized coil has a metallurgically bonded, thicker zinc coating applied by immersion in molten zinc — it offers superior outdoor corrosion resistance.
Electro-galvanized coil uses electroplating to deposit a thinner, smoother zinc layer that excels for indoor use and painting/finishing due to its uniform surface.
Q: How do I choose the right zinc coating mass for my application?
A: Consider exposure conditions: indoor/non-corrosive environments often use Z30–Z100 g/m².
General outdoor use typically requires Z120–Z275 g/m².
Harsh coastal, industrial or highly corrosive environments may need Z275+ or special coatings. Balance lifecycle needs against cost.
Q: How do coil dimensions (ID, OD, weight, width) affect my production?
A: Coil ID must match uncoiler mandrels; coil weight must be compatible with handling equipment and pay-off capacity.
Width and edge quality are critical for slitting and roll-forming accuracy. Provide your equipment specs to the supplier to avoid incompatibility.
Q: Can galvanized coil be painted directly after delivery?
A: Often yes, but proper surface preparation is recommended: remove oils, apply passivation or conversion coating if needed, and use suitable primers.
Electro-galvanized coils usually require less pretreatment; hot-dip coils may need additional cleaning for optimal paint adhesion.
Q: Are mill test reports and third-party inspections available?
A: Yes. MTRs are standard; buyers can request third-party pre-shipment inspections (SGS, BV, Intertek) and specific test reports (coating mass, adhesion, salt spray) as part of the purchase order.
Q: How should coils be stored and handled on site?
A: Store horizontally on dry dunnage, protected from direct rain and ground contact.
Avoid stacking incompatible coating classes together. Use proper lifting gear (C-hooks, spreader bars) to prevent coil damage.
Q: What information do you need to provide a precise quotation?
A: Required: base steel grade, thickness, width, coil ID and max coil weight, zinc coating mass (Z value), coating process (HDG or EG), surface finish, quantity (MT or coils), required certificates/inspections, packaging request, Incoterm and destination port. Include any slit or cut-to-length requests.
Contact our sales team today for a quotation or to discuss your project requirements. We are committed to providing high-quality galvanized steel coils that meet your exact specifications and delivery deadlines.
Your trusted partner in galvanized steel solutions.For further technical information, pricing, or customization, please contact our sales team:
